关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

标签:ivy组件依赖,ivySettings,IVY本地依赖仓库库,ivy项目     发布时间:2018-11-08

一、前言

关于eclipse中将项目第三方库改为从ivy仓库引用,无需进行配置ivysettings(eclipse-ivyide插件安装教程),具体参见如下操作步骤。

二、操作步骤

1. 先在项目创建测试java project项目(可以任意创建项目如web Project)

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

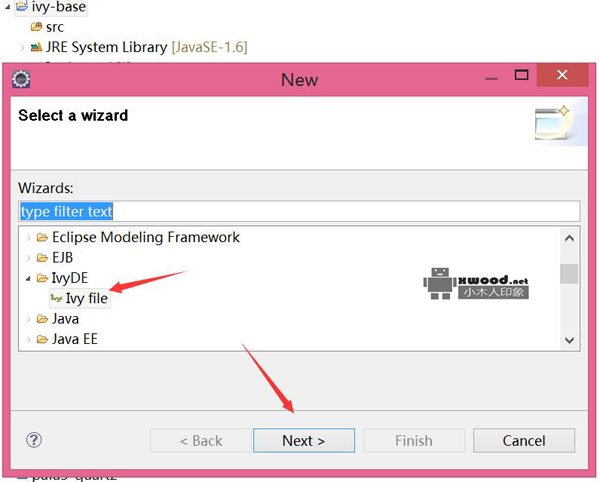

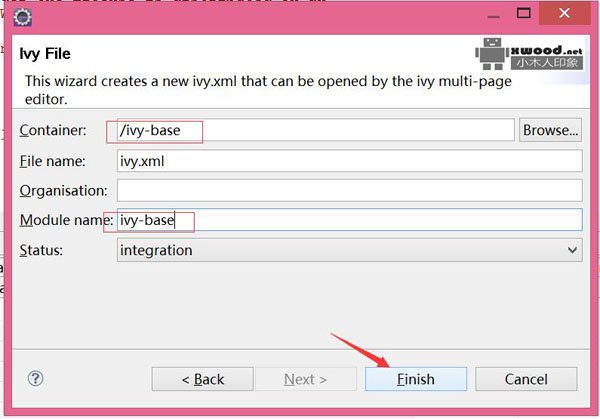

2. 如下图在项目创建ivy.xml的依赖配置

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

3. 右击项目中生成的ivy.xml,增加commons-lang和gson依赖进行测试(增加<dependencies>..</dependencies>节点内容),具体内容如下

<?xml version="1.0" encoding="ISO-8859-1"?>@b@<!--@b@   Licensed to the Apache Software Foundation (ASF) under one@b@   or more contributor license agreements.  See the NOTICE file@b@   distributed with this work for additional information@b@   regarding copyright ownership.  The ASF licenses this file@b@   to you under the Apache License, Version 2.0 (the@b@   "License"); you may not use this file except in compliance@b@   with the License.  You may obtain a copy of the License at@b@@b@     http://www.apache.org/licenses/LICENSE-2.0@b@@b@   Unless required by applicable law or agreed to in writing,@b@   software distributed under the License is distributed on an@b@   "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY@b@   KIND, either express or implied.  See the License for the@b@   specific language governing permissions and limitations@b@   under the License.    @b@-->@b@<ivy-module version="2.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"@b@       xsi:noNamespaceSchemaLocation="http://ant.apache.org/ivy/schemas/ivy.xsd">@b@    <info@b@        organisation=""@b@        module="ivy-base"@b@        status="integration">@b@    </info>@b@   @b@   <dependencies>  @b@            <dependency org="com.google.code.gson" name="gson" rev="1.7.1" />   @b@            <dependency org="commons-lang" name="commons-lang" rev="2.1" />   @b@   </dependencies>  @b@    @b@</ivy-module>

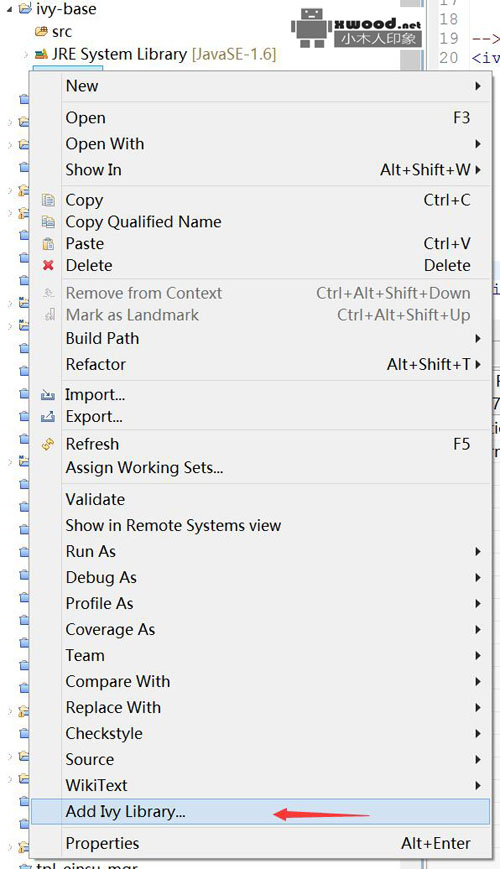

4. 右击ivy.xml,选择菜单中“Add Ivy Library...”项

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

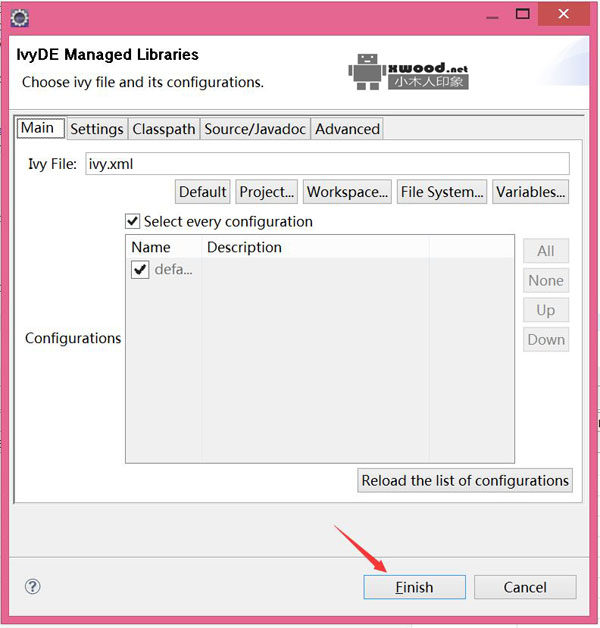

5. 在弹出的下面窗口,直接点击finish

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

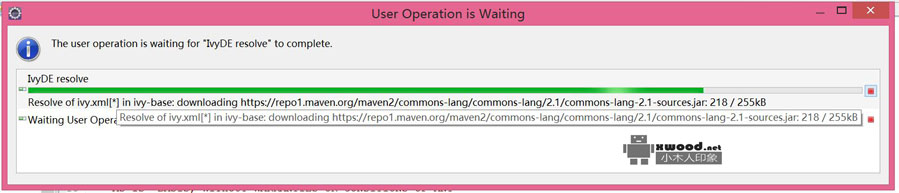

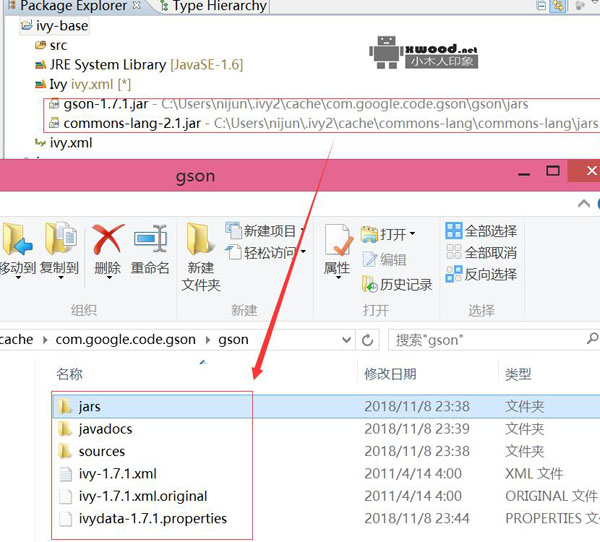

6. 直接从vy默认maven库(如需修改默认下载地址参见教程)中离线下载到本地并引入到项目中

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)

关于eclipse将项目加入ivy组件依赖简单(无需任何ivySettings配置)操作步骤示例(图文)
